What is the CAVIGEN Knowledge Hub?
The CAVIGEN Knowledge Hub brings together scientific resources, application examples and practical guidance for researchers working with 3D cell culture, spheroids, organoids and Organ-on-Chip systems. Here you will find publications, posters, application notes, FAQs and technical information that support you in designing, running and interpreting experiments on the CaviSphere® 3D cell culture platform.
The hub is built for a growing community of labs that want to make their 3D models more predictive – from early adopters of MicroSphere and PoroSphere to advanced users of SensoSphere for oxygen measurement in 3D.
1. FAQs
CaviSphere® is a microcavity-based 3D cell culture platform for spheroids and organoids, available as ready-to-use inserts and as films for integration into custom devices.
In more detail, all variants share a common microcavity architecture with up to 600 cavities/cm², manufactured by microthermoforming of polymer films. MicroSphere is optimised for imaging and standard assays, PoroSphere adds defined porosity for perfusion and co-culture, and SensoSphere integrates optical oxygen sensor dyes for spatially resolved oxygen measurements in 3D.
MicroSphere is designed for standardised 3D spheroid and organoid culture with good microscopy access. PoroSphere adds controlled porosity for perfusion, co-culture and barrier models. SensoSphere enables optical oxygen measurement directly in the microcavities.
In more detail, MicroSphere uses non-porous microcavities with defined diameter to generate spheroids of similar size. PoroSphere is based on ion-track etched and chemically treated films to create well-defined pores for fluid flow and cell migration. SensoSphere combines these microcavities with oxygen-sensitive and reference fluorophores; the dynamic fluorescence quenching of the sensor dye by oxygen allows ratiometric read-out of pericellular O₂ levels in real time.
Inserts are ideal if you want a ready-to-use format that fits directly into standard multiwell plates and requires minimal engineering effort. Films are the better choice if you are developing custom devices or Organ-on-Chip systems.
In more detail, CaviSphere inserts (e.g. 4-well inserts for 12-well plates) are pre-assembled units that can be handled like other cell culture inserts and support straightforward workflows in existing incubators, microscopes and plate readers. Films are flat microstructured foils that can be cut, bonded and integrated into microfluidic chips, bespoke chambers or Organ-on-Chip cartridges, while maintaining the same microcavity geometry and, for SensoSphere, the same optical oxygen sensor chemistry.
2. Publications
Our platform builds on more than 25 years of work on microstructured 3D cell culture systems at Karlsruhe Institute of Technology (KIT).
Below you find selected research articles, a review and an expert feature authored by members of the CAVIGEN team and collaborating researchers.
Research articles
O₂-sensitive microcavity arrays: A new platform for oxygen measurements in 3D cell cultures
Grün C, Pfeifer J, Liebsch G, Gottwald E.
Frontiers in Bioengineering and Biotechnology (2023), 11:1111316.
This article introduces oxygen-sensitive microcavity arrays that combine 3D spheroid culture with optical oxygen sensing. It describes the microthermoforming process used to generate microcavity arrays from oxygen-sensitive polymer films, and demonstrates label-free, real-time oxygen measurements in the pericellular microenvironment of individual spheroids. The study also shows how 3D mitochondrial stress tests can be performed in these arrays to characterise mitochondrial respiration in 3D.
(Read article on Frontiers – DOI: 10.3389/fbioe.2023.1111316)
Physiological oxygen measurements in vitro – Schrödinger’s cat in 3D cell biology
Gottwald E, Grün C, Nies C, Liebsch G.
Frontiers in Bioengineering and Biotechnology (2023), 11:1218957.
This perspective paper discusses why dissolved oxygen concentration is a critical, yet often neglected parameter in 3D cell culture and organoid models. It reviews historical and current methods for oxygen measurement, highlights the limitations of hyperoxic “normoxia” in conventional cell culture and argues for tissue-specific physioxia. The article outlines how integrated optical oxygen sensors and microcavity-based 3D systems can enable more realistic in vitro oxygen conditions and support New Approach Methodologies (NAMs).
(Read article on Frontiers – DOI: 10.3389/fbioe.2023.1218957)
Review article
Advanced 3D Cell Culture Techniques in Micro-Bioreactors, Part I: A Systematic Analysis of the Literature Published between 2000 and 2020
Grün C, Altmann B, Gottwald E.
Processes (2020), 8(12), 1656.
This systematic review analyses 3D cell culture in micro-bioreactors over a 20-year period. It classifies different 3D culture configurations by complexity level, bioreactor design and flow mode (perfusion vs. superfusion), and surveys materials, cell types and applications. The review provides a broad context for microcavity-based 3D cell culture systems and highlights trends towards more complex co-cultures, microfluidic platforms and organ-on-chip technologies.
(Read article on MDPI – DOI: 10.3390/pr8121656)
Expert article and feature
Sauerstoffsensitive Zellkultursysteme: Organoidkultur trifft Sensorarrays
(Article in German)
This expert article on Wiley Analytical Science introduces oxygen-sensitive cell culture systems and explains how sensor arrays can be combined with organoid and 3D cell culture models. It covers the basic principles of optical oxygen sensing, discusses the integration of sensor foils and microcavities into cell culture systems and presents example applications in organoid culture and in vitro toxicology. The article is aimed at researchers interested in bringing oxygen as a controlled parameter into their 3D cell culture practice.
3. Data sheets and downloads
Here you can download key documents with technical background information on the CaviSphere® platform and its oxygen-sensing capabilities.
CaviSphere Sheets – formats and specifications

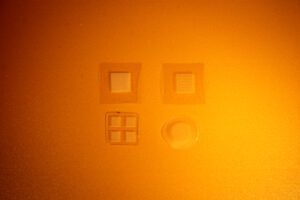

This data sheet gives an overview of the different CaviSphere® sheet formats for MicroSphere, PoroSphere and SensoSphere. It is intended for researchers who want to understand which sheet variants are available and how they can be used in standard inserts or custom devices.
It summarises the main geometrical and material features of the microstructured films, such as typical microcavity layouts, available diameters and the compatible polymers. The document also explains how CaviSphere sheets fit into common lab workflows, for example in combination with CellCrown™ inserts or as standalone films in custom setups.
White paper: PLA-based MicroSphere for more sustainable 3D cell culture
This white paper explores the use of PLA as a biobased material for MicroSphere microcavities and its potential contribution to more sustainable 3D cell culture workflows. It is relevant for labs that want to reduce the environmental footprint of their consumables without compromising data quality.
The document compares PLA to commonly used materials such as polycarbonate and polystyrene in terms of processing, optical clarity and cell culture performance, and discusses where PLA-based inserts are particularly suitable in routine 3D culture and organoid work.
4. Application notes and 3D cell culture use cases
How are CaviSphere® microcavity arrays used in real research projects?
The following examples highlight typical applications in toxicology, microfluidics and advanced read-out methods. They are meant as inspiration and starting points for your own setups.
3D toxicology and substance screening with oxygen-sensitive microcavity arrays
Focus: 3D toxicology assays, 3D mito stress tests, oxygen gradients
In this use case, hepatoma spheroids are generated and cultivated directly in oxygen-sensitive microcavity arrays. Aggregation and long-term culture are controlled within the cavities, while pericellular oxygen gradients can be monitored over time.
In more detail, the microcavity geometry ensures reproducible spheroid size, which is crucial for comparing responses to chemicals or drug candidates. Optical oxygen sensing in the same system enables parallel read-out of mitochondrial stress (for example via 3D mito stress tests) and oxygen consumption patterns. This combination supports a more nuanced interpretation of toxicological endpoints compared with conventional 2D assays.
(See also: Grün et al., Frontiers in Bioengineering and Biotechnology 2023, for details on oxygen-sensitive microcavity arrays.)
Custom oxygen-sensitive microchannels for microfluidic and Organ-on-Chip systems
Focus: customer-specific solutions, microfluidic integration, OoC and MPS development
CaviSphere microstructured films can be used as building blocks for oxygen-sensitive microchannels in microfluidic and Organ-on-Chip (OoC) systems. In this use case, customised layouts combine microcavities and optical oxygen sensor layers with channel structures tailored to a specific Organ-on-Chip or microphysiological system (MPS).
In more detail, the films are microthermoformed into channel-like geometries or bonded into existing chips, creating regions where oxygen profiles can be measured alongside 3D cell cultures or barrier models. This enables developers of OoCs and MPS to validate oxygen conditions within their chips, compare different perfusion strategies and design more physiologically oriented in vitro models before moving to animal studies or clinical samples.
(See also: Gottwald et al., Frontiers in Bioengineering and Biotechnology 2023, for a broader discussion of physiological oxygen measurements in vitro.)
PoroSphere in an MR-compatible bioreactor: capturing intracellular sodium in 3D cell culture
Focus: MR spectroscopy read-outs, intracellular Na⁺ as an early marker, tumour therapy research
In this use case, an MR-compatible bioreactor containing stacked porous microcavity arrays (PoroSphere by CAVIGEN) is used to culture 3D hepatoma cell aggregates during sodium magnetic resonance spectroscopy. The goal is to investigate how intracellular sodium (Na⁺) concentration can serve as an early marker of cell death and, consequently, as a tool to assess treatment response in tumour therapy at an early stage.
In more detail, HepG2 hepatoma cells are cultured as 3D constructs based on the protocol by Kleimaier et al. (Processes 2018, DOI: 10.3390/PR8101267). Using sodium MR spectroscopy in this 3D cell culture system, intracellular sodium changes can be monitored non-invasively following inhibition of the Na⁺/K⁺-ATPase. The MR-compatible bioreactor encloses and nurtures the cells with stacked PoroSphere films, which provide mechanical support, medium access and MR visibility during the measurement.
This combination of porous microcavity arrays and advanced MR spectroscopy helps bridge physics, biology and medicine: it allows researchers not only to follow relative changes in intracellular sodium over time, but also to approach absolute quantification in a physiologically more relevant 3D environment than traditional 2D monolayers.
If you are working on advanced in vitro models, MR-based functional read-outs or early-response markers in tumour therapy, we are happy to explore how PoroSphere-based 3D setups could support your research.
